Liquid Screed

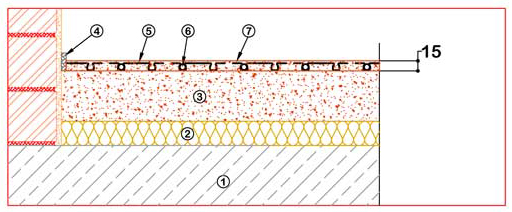

Surface Heating & Cooling Systems on existing concrete or screeded floors
Key:
1. Existing sub floor
2. Existing insulation
3. Existing screed
4. edge isolation material profile with sealing skirt
5. Mini Tec mounting board
6. PE-Xa 9.9mm x 1.1mm pipe by the Engel process
7. 15mm screed on minitec system
1. Existing sub floor
2. Existing insulation
3. Existing screed
4. edge isolation material profile with sealing skirt
5. Mini Tec mounting board
6. PE-Xa 9.9mm x 1.1mm pipe by the Engel process
7. 15mm screed on minitec system

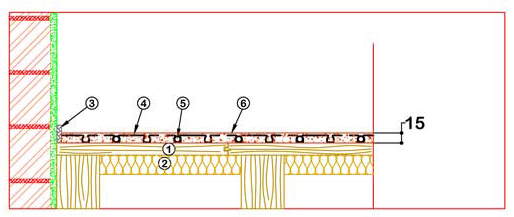

Surface Heating & Cooling Systems on existing suspended timber floors
Key:
1. Existing timber floor
2. Existing insulation
3. edge isolation material profile with sealing skirt
4. Mini Tec mounting board
5. PE-Xa 9.9mm x 1.1mm pipe by the Engel process
6. 15mm to 20mm Screed on minitec system
